DOLPHY

750mm Straight Grab Rail

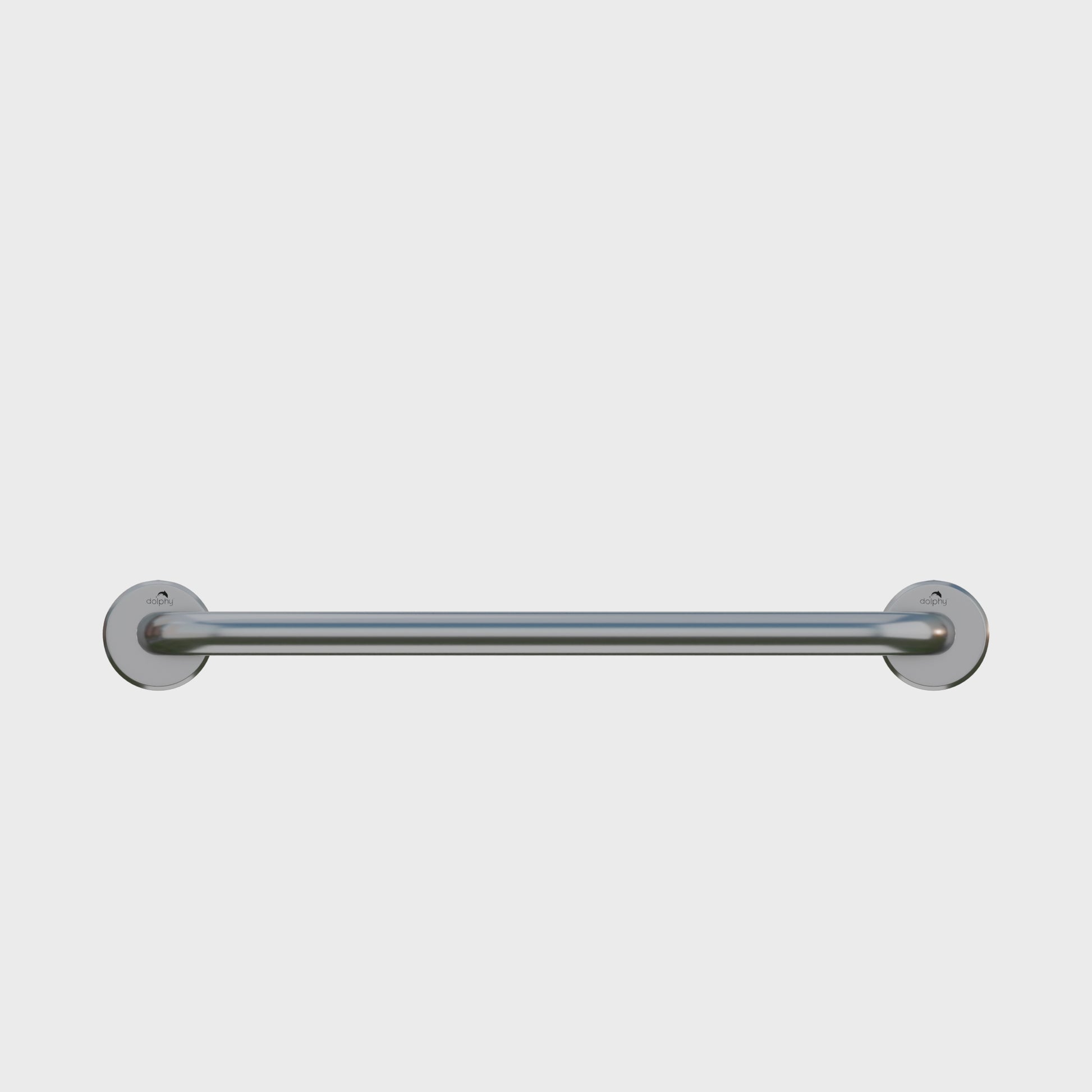

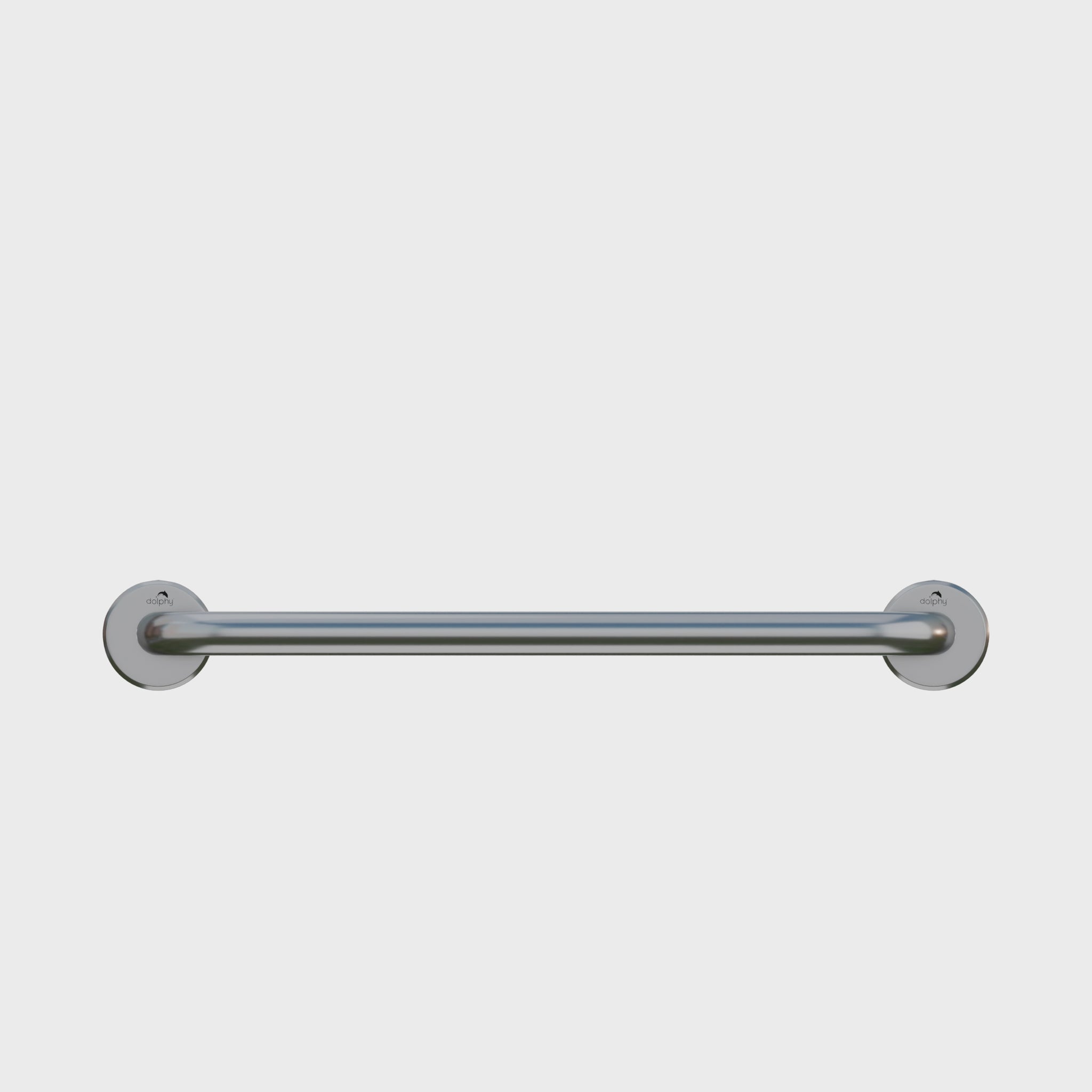

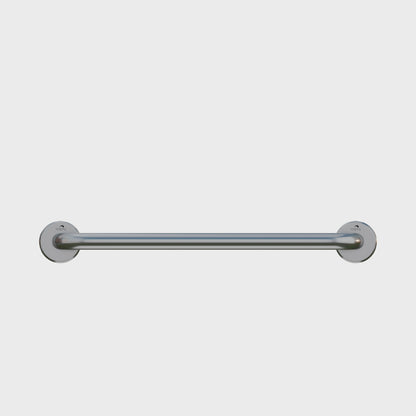

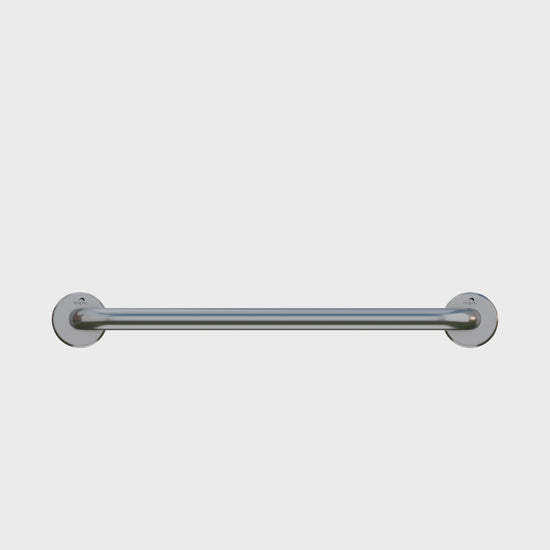

750mm Straight Grab Rail

SKU: DHGB0041

Description:

Our Dolphy series are made to the highest quality standards and feature a hidden mounting system with ‚Ausure grip‚AU handles. All grab rails come complete with mounting hardware.

Specifications:

  • Product Code: DHGB0041
  • Product Name: 750mm Straight Grab Rail
  • Colour: Silver
  • Material: #304 Stainless Steel

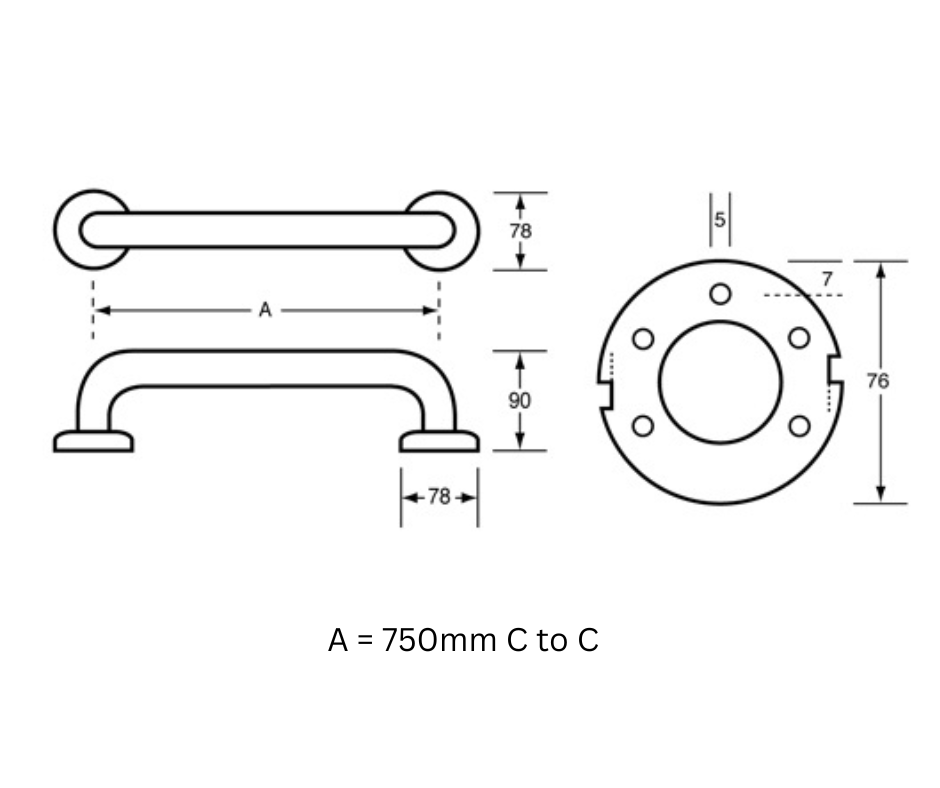

  • Mounting: Concealed Fix - 78mmØ Mount
  • Dimension: 750mm C to C

Features:

  • To secure your safety during your bathing experience. It is important to equip your bathroom with grab bars or safety rails to assist your mobility in the bathroom.
  • Rust-proof or rust-resistant, particularly for use in a shower, bath or tub.
  • Material are Strong, Durable and Safe. Strength: sufficient for safe, repeated use considering weight of user and carer/assistant (if required). Minimum load of 150 kg (for wide platform)
  • Length of the grab rail In order to ensure rails are properly fitted into supporting wall structures/frame – customized length is increasingly used. Manufacturers may offer this while installers may order rails in full length and cut-to-measure (work in collaboration with prescriber & user- when possible)

Installation Options:

  • Locate fixing position on wall or partition and mark using mounting holes, ensuring the unit is level.
  • Mount the concealed mounting flanges to the wall using appropriate fixings (not supplied).
  • Slide covers over mounting flanges, ensuring the raised edges of the flange lines up with the dimples of the flange cover. Twist and lock into place.
  • Check the unit is level to finish installation.
