Our Dolphy series are made to the highest quality standards and feature a hidden mounting system with ‚Ausure grip‚AU handles. All grab rails come complete with mounting hardware.
Specifications:
Product Code: DHGB0035

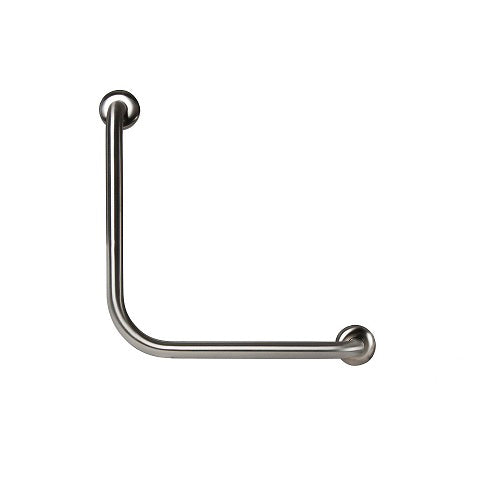

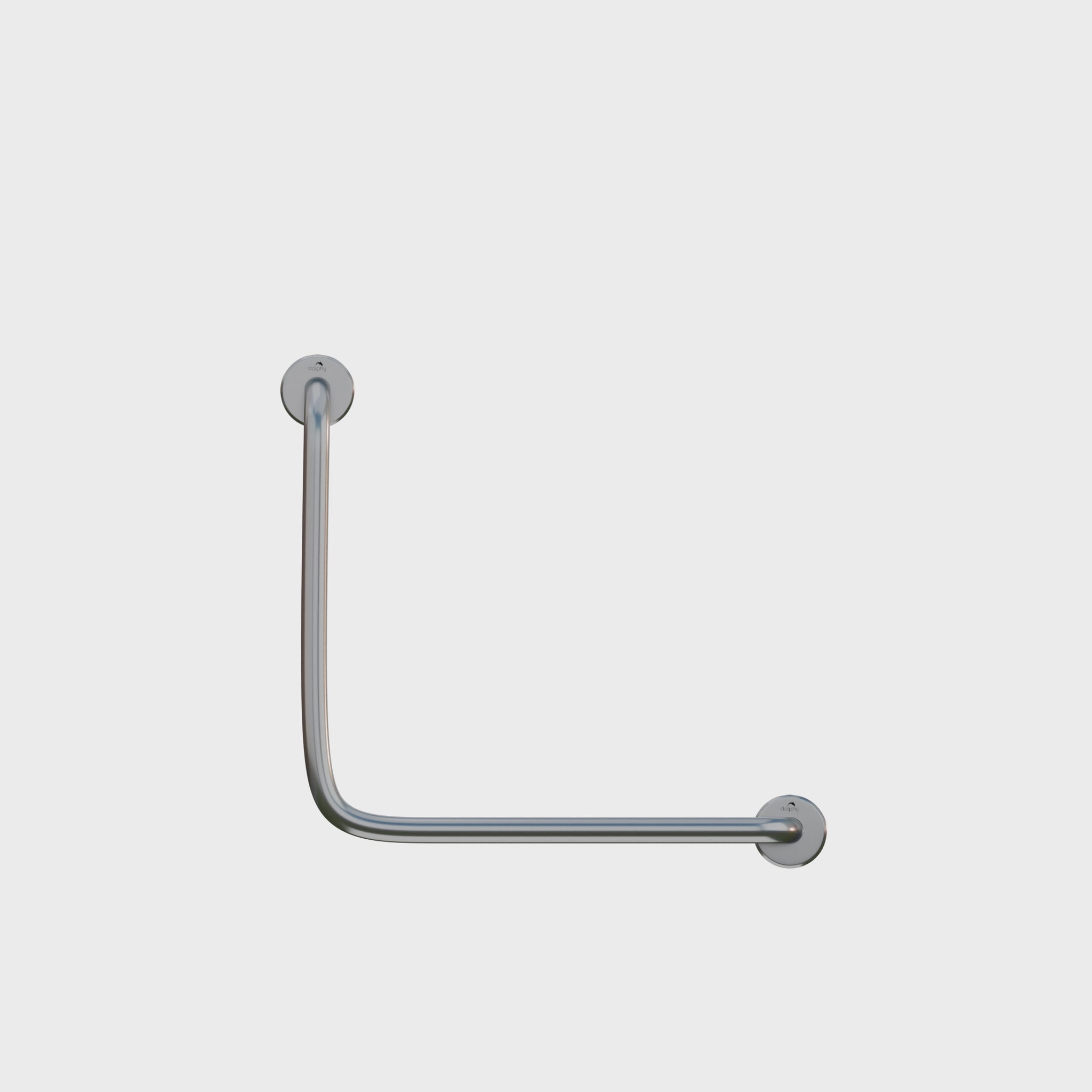

Product Name: Grab Rail 90° Ambulant
Colour: Silver
Material: #304 Stainless Steel
Mounting: Concealed Fix - 78mmØ Mount
Dimension: 450mm x 450 mm
Features:
To secure your safety during your bathing experience. It is important to equip your bathroom with grab bars or safety rails to assist your mobility in the bathroom.
Rust-proof or rust-resistant, particularly for use in a shower, bath or tub.
Material are Strong, Durable and Safe. Strength: sufficient for safe, repeated use considering weight of user and carer/assistant (if required). Minimum load of 150 kg (for wide platform)
Length of the grab rail In order to ensure rails are properly fitted into supporting wall structures/frame – customized length is increasingly used. Manufacturers may offer this while installers may order rails in full length and cut-to-measure (work in collaboration with prescriber & user- when possible)
Installation Options:
Locate fixing position on wall or partition and mark using mounting holes, ensuring the unit is level.
Mount the concealed mounting flanges to the wall using appropriate fixings (not supplied).
Note: For best results, mount the horizontal component of the unit first to ensure the unit is aligned correctly to the fixing points.
Slide covers over mounting flanges, ensuring the raised edges of the flange lines up with the dimples of the flange cover. Twist and lock into place.
